Feature:
The Avatar comes equipped with a 48MP
1/1.7" CMOS sensor, which supports up to 4K video at 100 fps. This footage
is shot with an ultra-wide 155° FOV that mimics how we see with our own eyes
for a natural and realistic experience. The footage is stabilized in two ways
using RockSteady 2.0 EIS and HorizonSteady EIS. RockSteady EIS works to reduce
camera shake, while HorizonSteady locks the Avata's footage to a level horizon.

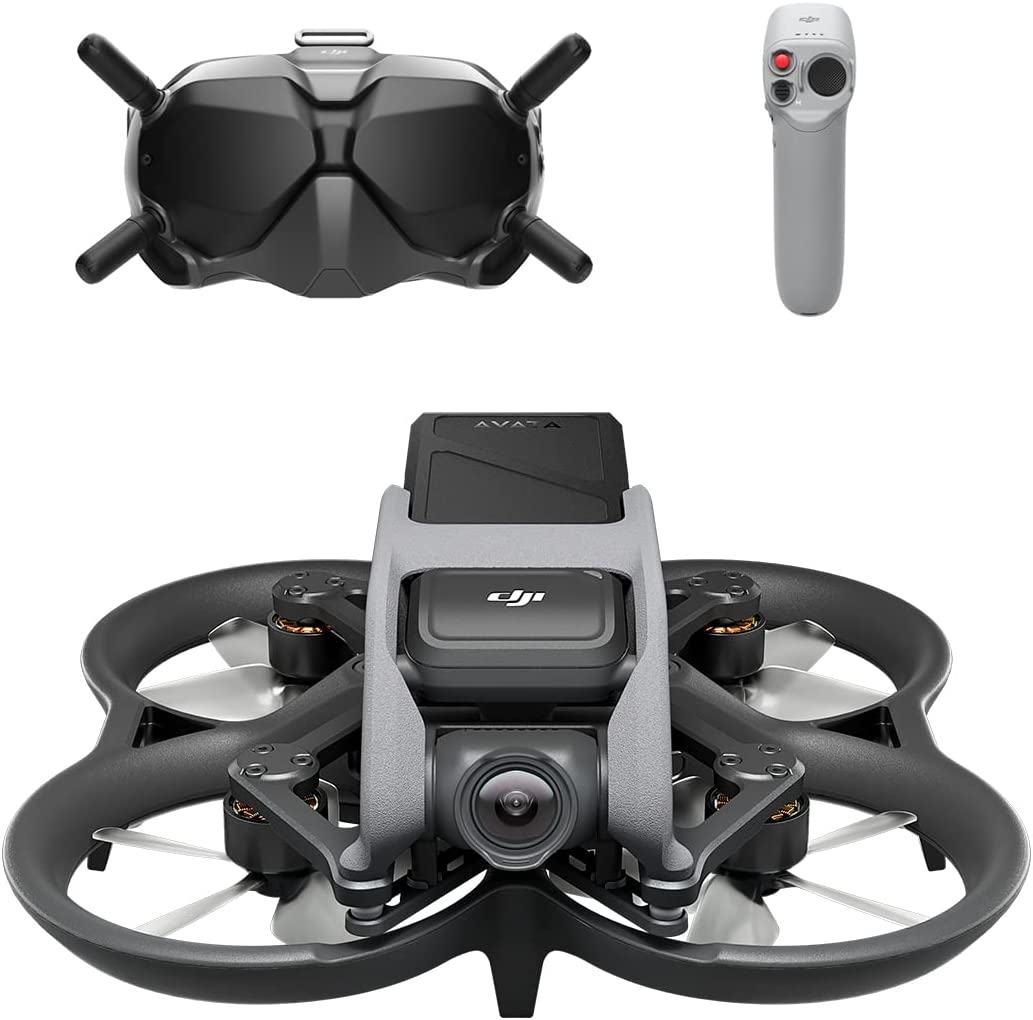

The ultra-wide 155° FOV of the Avata makes
for an exhilarating experience when first-person piloting with the DJI FPV
Goggles V2. The goggles receive a steady transmission via the DJI O3+ system
over dual-band Wi-Fi 5 (802.11ac) and can run for up to 110 minutes per charge.
The live feed you view is made to be lifelike and smooth thanks to dual
built-in 2" screens, each with a resolution of 1440 x 810, running at a
fast 144 Hz refresh rate.
O3+ Transmission
Utilizing 2T2R omnidirectional antennas,
the Avata can feed the FPV Goggles V2 with a video featuring a 30 ms latency at
a 50 Mb/s data transfer rate. The footage is compressed with H.265 to save on
storage space when saving videos, and it can be sent from up to 6.2 miles away.
Obstacle Sensing
A downward binocular vision sensor and ToF
depth sensor work conjunctively to detect obstacles on the ground during
flight. This gives pilots the ability to safely fly low-altitude and indoor
flights.
Drone Safety
If you envision an impending accident, you
can quickly activate the emergency brake button to have the Avata stop on a
dime and hover in place. Another safety feature is RTH (Return to Home), which
automatically flies the drone back to its starting point if the battery is too
low or if the signal to the remote is lost.
Turtle Mode
The propeller guards usually let the Avata
take a bump and keep on flying, but what if the Avata hits hard enough to fall
and land on its back like a turtle? Just activate Turtle Mode with a few taps
to have the Avata flip itself right-side up and get back to flying.
Virtual Flight App
Designed for Windows, iOS 12.0+, and
Android 9.0+, this software lets new and experienced pilots practice flying
indoors and outside, honing their skills from a variety of preinstalled
simulated scenarios.
Additional Features:
·
Shoot in D-Cinelike mode to allow for advanced color grading
during post-production
·
Ducted aerodynamic design for up to 18 minutes of flight time
·
Three-speed modes: Normal (up to 17.9 mph), Sport (up to 31.3
mph), and Manual (up to 60.4 mph)
·
Take still JPEG photos at up to 4000 x 3000 resolution
·
Capable of withstanding Level 5 winds of up to 24 mph
·
microSD slot for optional cards up to 256GB
· Compatible with FPV Remote Controller 2 and Goggles V2.
Performance
Maximum
Takeoff Weight |
14.5 oz
/ 410 g |
Maximum
Horizontal Speed |
17.9 mph
/ 8 m/s (Normal) |
Maximum
Ascent Speed |
13.4 mph
/ 6 m/s |
Maximum
Descent Speed |
13.4 mph
/ 6 m/s |
Maximum
Wind Resistance |
23.9 mph
/ 10.7 m/s |
Flight
Ceiling |
3.1 Miles
/ 5000 m |
Maximum
Flight Time |
18
Minutes |
Maximum
Hover Time |
18
Minutes |
Hovering
Accuracy |
±0.3'
/ 0.1 m Vertical with Vision Positioning |
Sensor
Type |
1/1.7"-Type
CMOS Sensor |
Sensor
Resolution |
Effective:
48 Megapixel |
Focal
Length |
2.3mm
/ 12.7mm (35mm Equivalent) |
Field
of View |
155° |
Maximum
Aperture |
f/2.8 |
Minimum
Focus Distance |
2'
/ 0.6 m |
ISO
Sensitivity |
100
to 6400 in Auto Mode |
Shutter
Speed |
1/8000
to 1/50 Seconds |
Video
Format |
3840
x 2160p at 50/60 fps (150 Mb/s MP4 via H.265/HEVC) |
Broadcast
Resolution |
None |
Still
Image Support |
JPEG |
Internal
Storage |
20
GB |
Media/Memory
Card Slot |
Single
Slot: MicroSD/MicroSDHC/microSDXC [256 GB Maximum] |
Modes |
Single
Shot |
Gimbal
Number
of Axes |
1
(Pitch) |
Control
Range |
Pitch:
-80 to 65° |
Angular
Speed |
Pitch:
60°/s |
Control
Accuracy |
±0.01° |
Flight
Control System
GNSS
Support |
GPS,
BeiDou, Galileo |
3D
Object Detection
Operating
Range |
Not
Specified by Manufacturer |
Vision
System
Vision
System |
Downward |
Obstacle
Sensory Range |
1.6
to 65.6' / 0.5 to 20.0 m |
Operating
Environment |
Surface
with Clear Patterns at >15 lux |
Remote
Controller / Transmitter
Operating
Frequency |
2.4
GHz (2.400 to 2.483) |
Maximum
Operating Distance |
6.2 Miles
/ 10 km |
Transmitter
Power |
33
dBm (2.4 G) |
Operating
Temperature |
14
to 104°F / -10 to 40°C |
Flight
Battery
Battery
Chemistry |
Li-ion |
Battery
Capacity |
2420
mAh / 35.71 Wh |
Charging
Temperature |
41
to 104°F / 5 to 40°C |
Weight |
5.7 oz
/ 162 g |
General
Rotor
Configuration |
4 |
Operating
Temperature |
14
to 104°F / -10 to 40°C |
Diagonal
Size |
4.7"
/ 120 mm |
Overall
Dimensions |
7.1
x 3.1 x 7.1" / 180.0 x 80.0 x 180.0 mm |
Packaging
Info
Package
Weight |
4.5
lb |
Box
Dimensions (LxWxH) |
17.9
x 10 x 9.8" |
