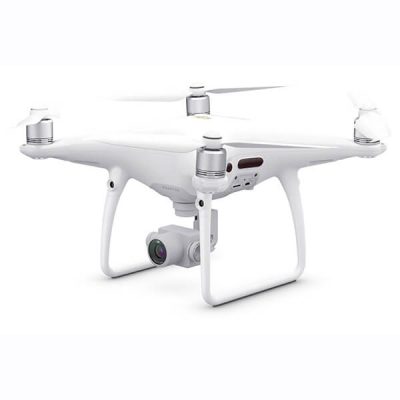

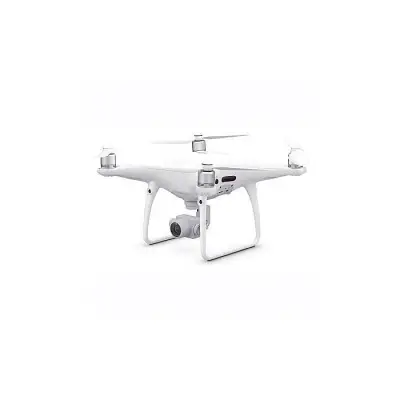

The DJI Phantom 4 Pro V2, Featuring a 1-inch CMOS sensor that can shoot 4K/60fps videos and 20MP photos, the Phantom 4 Pro V2.0 grants filmmakers absolute creative freedom. The OcuSync 2.0 HD transmission system ensures stable connectivity and reliability, five directions of obstacle sensing ensure additional safety, and a dedicated remote controller with a built-in screen grants even greater precision and control. A wide array of intelligent features makes flying that much easier. The Phantom 4 Pro V2.0 is a complete aerial imaging solution, designed for the professional creator.
Aircraft |
||
Weight
(Battery & Propellers Included) |
1375 g |
|
Diagonal
Size (Propellers Excluded) |
350 mm |
|
Max
Ascent Speed |
S-mode:
6 m/s |
|
Max
Descent Speed |
S-mode:
4 m/s |
|
Max
Speed |
S-mode:
45 mph (72 kph) |
|
Max Tilt
Angle |
S-mode:
42° |
|
Max
Angular Speed |
S-mode:
250°/s |
|
Max
Service Ceiling Above Sea Level |
19685 ft
(6000 m) |
|
Max Wind
Speed Resistance |
10 m/s |
|
Max
Flight Time |
Approx.
30 minutes |
|
Operating
Temperature Range |
32° to
104°F (0° to 40°C) |
|
Satellite
Positioning Systems |
GPS/GLONASS |
|
Hover
Accuracy Range |
Vertical: |
|
Gimbal |
||
Stabilization |
3-axis
(pitch, roll, yaw) |
|
Controllable
Range |
Pitch:
-90° to +30° |
|
Max
Controllable Angular Speed |
Pitch:
90°/s |
|
Angular
Vibration Range |
±0.02° |
|
Vision System |
||
Vision
System |
Forward
Vision System |
|
Velocity
Range |
≤31 mph
(50 kph) at 6.6 ft (2 m) above ground |
|
Altitude
Range |
0-33 ft
(0-10 m) |
|
Operating
Range |
0-33 ft
(0-10 m) |
|
Obstacle
Sensory Range |
2-98 ft
(0.7-30 m) |
|
FOV |
Forward:
60° (Horizontal), ±27° (Vertical) |
|
Measuring
Frequency |
Forward:
10 Hz |
|
Operating
Environment |
Surface
with clear pattern and adequate lighting (lux>15) |
|
Infrared Sensing System |
||
Obstacle
Sensory Range |
0.6-23
feet (0.2-7 m) |
|
FOV |
70°
(Horizontal), ±10° (Vertical) |
|
Measuring
Frequency |
10 Hz |
|
Operating
Environment |
Surface
with diffuse reflection material, and reflectivity > 8% (such as walls,
trees, humans, etc.) |
|
Camera |
||
Sensor |
1-inch
CMOS |
|
Lens |
FOV 84°
8.8 mm/24 mm (35 mm format equivalent) f/2.8-f/11 auto focus at 1 m-∞ |
|
ISO
Range |
Video: |
|
Mechanical
Shutter Speed |
8-1/2000
s |
|
Electronic
Shutter Speed |
8-1/8000
s |
|
Size |
3:2
Aspect Ratio: 5472×3648 |
|
PIV
Image Size |
4096×2160
(4096×2160 24/25/30/48/50p) |
|
Still
Photography Modes |
Single
Shot |
|
Video
Recording Modes |
H.265 |
|
Max
Video Bitrate |
100 Mbps |
|
Supported
File Systems |
FAT32
(≤32 GB); exFAT (>32 GB) |
|
Photo |
JPEG,
DNG (RAW), JPEG + DNG |
|
Video |
MP4/MOV
(AVC/H.264; HEVC/H.265) |
|
Supported
SD Cards |
microSD |
|
Operating
Temperature Range |
32° to
104°F (0° to 40°C) |
|
Remote Controller |
||
Operating
Frequency |
2.400-2.483
GHz and 5.725-5.850 GHz |
|
Max
Transmission Distance |
2.400-2.483
GHz, 5.725-5.850 GHz (Unobstructed, free of interference) |
|
Operating
Temperature Range |
32° to
104°F (0° to 40°C) |
|
Battery |
6000 mAh
LiPo 2S |
|
Transmitter
Power (EIRP) |
2.400-2.483
GHz |
|
Operating
Current/Voltage |
1.2 A@7.4
V |
|
Video
Output Port |
GL300K:
HDMI |
|
Mobile
Device Holder |
GL300K:
Built-in display device (5.5-inch screen, 1920×1080, 1000 cd/m2, Android
system, 4 GB RAM+16
GB ROM) |
|
Charger |
||
Voltage |
17.4 V |
|
Rated
Power |
100 W |
|
Intelligent Flight Battery |
||
Capacity |
5870 mAh |
|
Voltage |
15.2 V |
|
Battery
Type |
LiPo 4S |
|
Energy |
89.2 Wh |
|
Net
Weight |
468 g |
|
Charging
Temperature Range |
41° to
104°F (5° to 40°C) |
|
Max
Charging Power |
160 W |
|
App / Live View |
||
Mobile
App |
DJI GO 4 |
|
Live
View Working Frequency |
2.4 GHz
ISM, 5.8 GHz ISM |
|
Live
View Quality |
720P @
30fps, 1080P @ 30fps |
|
Latency |
Phantom
4 Pro V2.0: 220 ms (depending on conditions and mobile device) |
Featuring a 1-inch CMOS sensor that can shoot 4K/60fps
videos and 20MP photos, the Phantom 4 Pro V2.0 grants filmmakers absolute
creative freedom. The OcuSync 2.0 HD transmission system ensures stable
connectivity and reliability, five directions of obstacle sensing ensure
additional safety, and a dedicated remote controller with a built-in screen
grants even greater precision and control. [1] A wide array of intelligent
features makes flying that much easier. The Phantom 4 Pro V2.0 is a complete
aerial imaging solution, designed for the professional creator.
The onboard camera features a 1-inch 20MP CMOS sensor and a
mechanical shutter, eliminating rolling shutter distortion. An advanced sensor
and impressive processing capture every detail and provide the image data
needed for advanced post-production.
The Phantom 4 Pro V2.0 camera has an optimized f/2.8 wide-angle
lens, ensuring consistently detailed photos and videos that remain vivid and
sharp while maintaining color accuracy.
An enhanced video processing system allows videos to be captured
in Cinema 4K at 100 Mbps, enabling high-resolution slow-motion shots. Record in
D-Log mode and H.265 codec to capture professional footage with high dynamic
range, optimizing image quality.
In addition to beautiful landscapes, aerial imaging allows new
perspectives on everything from serene vistas to motor races. A mechanical
shutter eliminates rolling shutter distortion which can occur when capturing
fast-moving subjects or when flying at high speed. The electronic shutter
features Burst mode, capable of shooting 14 fps at 20 MP to catch the perfect
moment.
Several flight modes make flying and creating with the Phantom 4
Pro V2.0 a streamlined and convenient experience. Switching between flight
modes grants pilots the control they need, whether they seek smoothness,
simplicity, or speed. Intuitive controls and a maximum speed of 45 mph simplify
complex shots.
ActiveTrack can recognize and automatically follow people and
objects like cars and boats. The RTH feature automatically calculates an
optimal route according to the environment and bypasses obstacles along the
way. Plot a course simply by tapping on the screen, granting more than enough
time to concentrate on getting the perfect shot. Dra a flight path in real-time
on the camera screen, and the aircraft will compute a corresponding route,
making aerial photography a more streamlined experience.
FlightAutonomy is an advanced aerial intelligence and flight
automation platform, that gives filmmakers the confidence to capture more complex
images. A real-time view of its environment and 3D map provide crucial data.
Redundant IMUs and compasses monitor critical data and rule out possible
errors, dramatically enhancing the reliability of flight. Obstacle sensing in
five directions improves safety and overall flight experience. Raise one arm,
and the aircraft frames you perfectly in the center of the photo. By reaching
out two arms simultaneously, the aircraft begins a selfie countdown.
The Phantom 4 Pro V2.0’s remote controller uses OcuSync 2.0
video transmission, which employs time-division multiplexing technology to send
control signals and receive video signals simultaneously, which allows for
1080p live streaming at a distance of up to ten kilometers. Supporting both 2.4
GHz and 5.8 GHz, OcuSync 2.0 scans for the frequency band with the lowest
interference and switches accordingly to maintain clear transmission. Thanks to
OcuSync 2.0, the Phantom 4 Pro V2.0 connects wirelessly to the DJI Goggles for
an even more immersive experience.
An ultra-bright 5.5-inch screen makes vivid colors easily
visible even in direct sunlight. As the DJI GO 4 app is built into the screen,
a mobile device is not required, simplifying operation. The remote controller
features several different ports and a five-hour battery life making the
Phantom 4 Pro V2.0 a comprehensive aerial imaging solution.
The DJI GO 4 app shows battery lifetime and calculates remaining
flight times according to distance traveled and more. When the minimum distance
required for a safe journey back to the takeoff point is reached, a prompt will
alert the pilot. An advanced battery management system is also in place to
prevent overcharging and over-draining. When placed in long-term storage,
batteries will discharge power to maintain good health.
To fly Drone, you may need to get Government Authorized
Certificate for your area or any other place. Star Tech will not provide a
refund or be involved in any other actions regarding Drone Flying Restrictions.
For a Drone purchase, you need to submit your national identity card or passport copy and valid mobile number (which is registered with the same national identity card) to our sales center or via mail.
