Boya BY-WM3U is an advanced 2.4 GHz wireless system that provides stellar, broadcast-quality sound to Android smartphones, tablets, and computers with USB-C connectors, DSLRs, camcorders, recorders, etc. It is ideal for broadcasters, podcasters, bloggers, live-streamers, and content creators. Boya BY-WM3U Bluetooth Microphone design with built-in microphone on the transmitter, and also featured with Omnidirectional Polar Pattern, 20Hz-20KHz (±3dB) Frequency Response, <0.1% Distortion, 48kHz Sampling Rates, 16Bit Bit Depth, 75db or more Signal-to noise ratio, -42dB±3dB (1dB=1V/Pa@1kHz) Sensitivity & 20m (without obstacle) Operating Distance.
The storage box of BOYA BY-WM3U is also where to pair and charge the transmitter and receiver. After the storage box is fully charged, it maximum allows 2 times full charging for the transmitter & receiver, and every time charging maximum supports the transmitter/receiver to continue working for about 4.5 hours / 8 hours, Charging Case:2 hours (TX: 2 hours & RX: 2 hours). This Bluetooth Microphone has a Type-C Charging Port (Charging Case 2 hours, TX:2 hours & RX:2 hours).
Transmission
Type: |
2.4GHz |
Polar
Pattern: |
Omnidirectional |
Frequency
Response: |
20Hz-20KHz
(±3dB) |
Distortion: |
<0.1% |
Sampling
Rates: |
48kHz |
Bit
Depth: |
16Bit |
Signal-to-noise
ratio: |
75db
or more |
Sensitivity: |
-42dB±3dB
(1dB=1V/Pa@1kHz) |
Operating
Distance: |
20m(without
obstacle) |
Power
Consumption: |
TX:
80mW RX: 60mW |
Working
Time: |
TX:
4.5 hours * two times |
RX:
8 hours * two times |
|
Charing
Time: |
TX:2
hours |
RX:2
hours |
|
Charging
Case:2 hours |
|
Charging
Port(Charging Case): |
Type-C |
Battery
Capacity: |
TX:100mA |
RX:100mA |
|
Charging
Case:1000mA |
|
Size: |
Charging Case:120*77*30.5m(4.7*3*1.2") |
TX:51.8*15.6*18mm(2*0.6*0.7") |
|
RX:54*15.6*15.6mm(2*0.6*0.6") |
|
Weight: |
TX+RX+Charging
Case: 129g (4.5 oz) |
TX:10.5g (0. 37 oz) RX:9.5g (0. 33 oz) |
• 2.4GHz transmission
technology
• Included with
Type-C, 3.5mm
TRS & TRRS adapters
• Interchangeable
design between
different adapters to the receiver
• Compatible with most
Android Type-C smartphones,
tablets, Windows/ Mac PC, iPad Pro Macbook
Pro,
DSLRs, camcorders, recorders, etc
• Storage box is also
where to paring and
charging the transmitter and receiver.
• 1-time full charging
support for the transmitter /
receiver to continue working 4.5 hours/ 8 hours.
Innovate 2.4 GHz Wireless System
BY-WM3U combines the
revolutionary design and delivers an advanced 2.4 GHz wireless system that
provides stellar, broadcast-quality sound. It can be used in any country and no
need to worry about the band limitation.
Versatility and Industrial Leading Charging
Case design

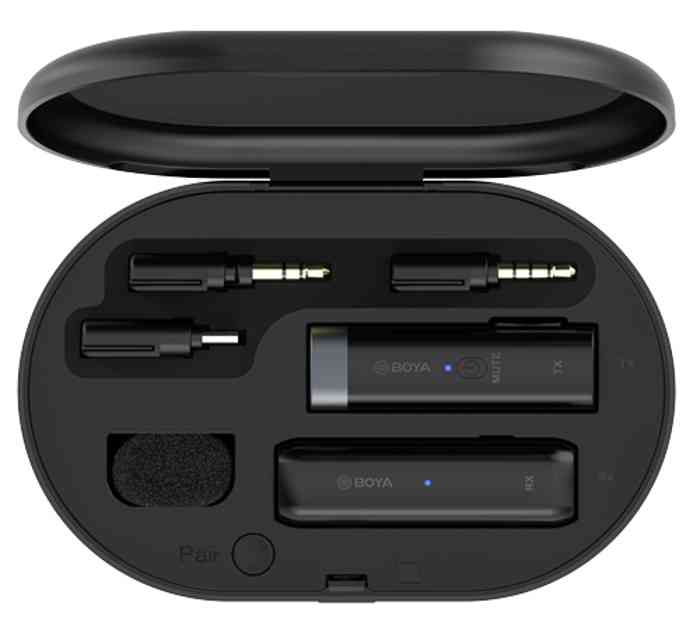

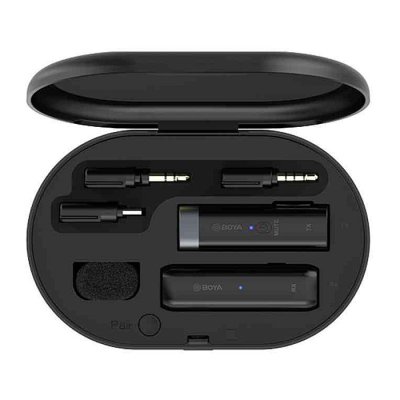

BY-WM3U is designed
with a Type-C charging carry case that provides vital protection for storage and transit but also provides a rechargeable 1000mAh internal battery allowing you to charge your system anywhere.
Perfect for creators who are always on the go, and need to worry no or power.
You can even charge the storage case with a USB power bank, isn’t it
convenient? One-time full charging can support the transmitter/receiver to
continue working 4.5 hours/ 8 hours.

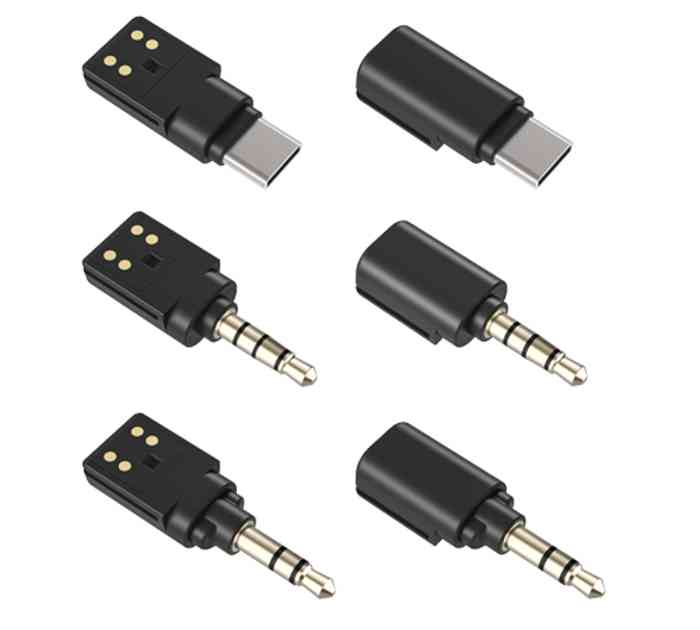

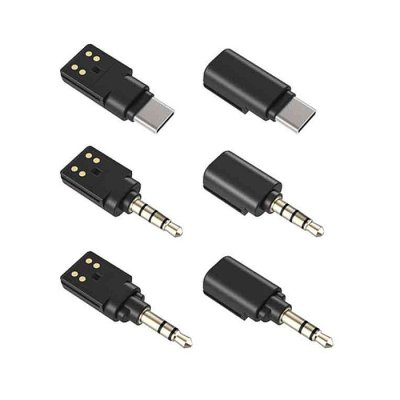

The receiver comes
with a Type-C adapter, a 3.5mm TRS, and a 3.5mm TRRS adapter, it is compatible
with Android smartphones, tablets, and computers with USB-C connectors, DSLRs,
camcorders, recorders, etc. The transmitter comes with a foam/fur windshield,
which can effectively reduce environmental noise.
Easy to Use and Easy to Carry
With revolutionary one-touch pairing built into the charging case, you can pair the Transmitters and Receiver without fumbling through menus, searching through channels, or even removing them from the case. The dimension of the storage case is 120mm*77mm*30.5mm (4.7"*3"*1.2"), convenient to carry everywhere.
