Specification:
Standard&Protocol
IEEE 802.3/3U IEEE 802.11n/g/b
Interface
1 10/100Mbps WAN Port
3 10/100Mbps LAN Ports
Antenna
2 fixed 5dbi Omni Directional antennas
Button
1 Reset/WPS Button
Dimension
127.4mm*90.5mm*26mm (L*W*H)
Wireless Link Rate
IEEE 802.11n: up to 300Mbps
IEEE 802.11g: up to 54Mbps
IEEE 802.11b: up to 11Mbps
Frequency Range
2.412GHz-2.472GHz
Working Mode
Universal Repeater
AP
WISP
WDS Bridge
Wireless Security
64/128bit WEP
WPA-PSK
WPA2-PSK
WPS support
Wireless Function
Enable/Disable Wireless Radio
Wireless Access Control
Reception Sensitivity
b mode:1M -92dBm@8% 11M -87dBm@8% PER
g mode:54M -72dBm@8% PER
n mode:72.2M -68dBm@8% PER; 150M -68dBm@8% PER
Internet Connection Type
Dynamic IP、PPPOE、Static IP、L2TP、PPTP
DHCP Server
Built-in DHCP server
DHCP Client List
Address Reservation
Parental Control
Client Filter
Mac Filter
Websites Filter
VPN Pass-through
PPTP
L2TP
Other
Bandwidth Control
Mac Address Clone
Remote Web Management
System Log
Package Content

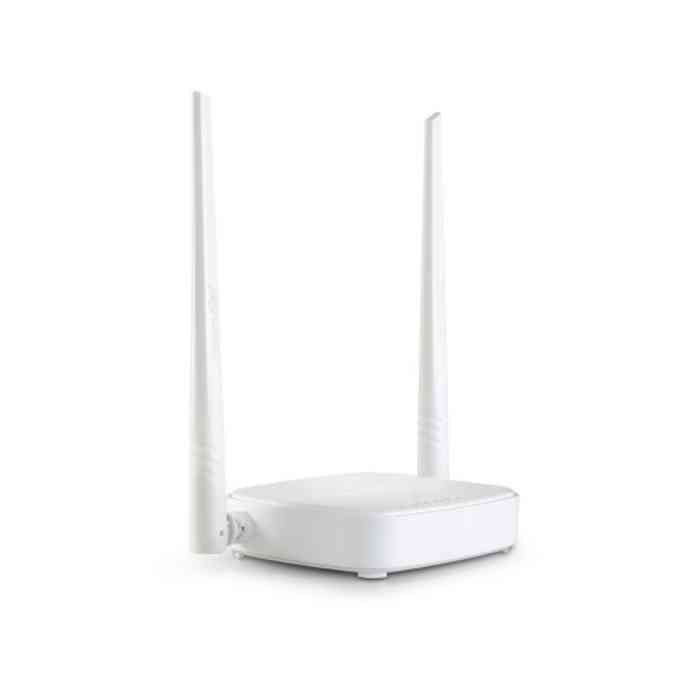

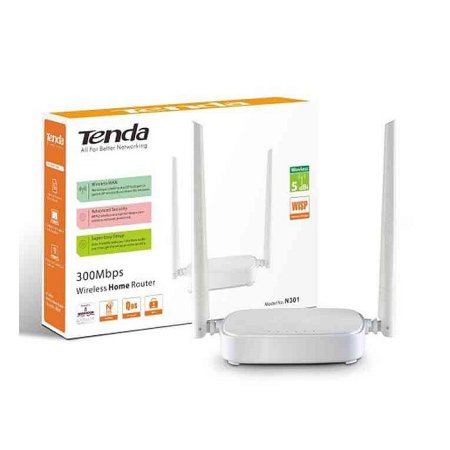

Wireless N300 Easy Setup Router N301
Quick Installation GuideEthernet cable
Power adapter
Resources CD
Environment
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCC, CE,RoHs
