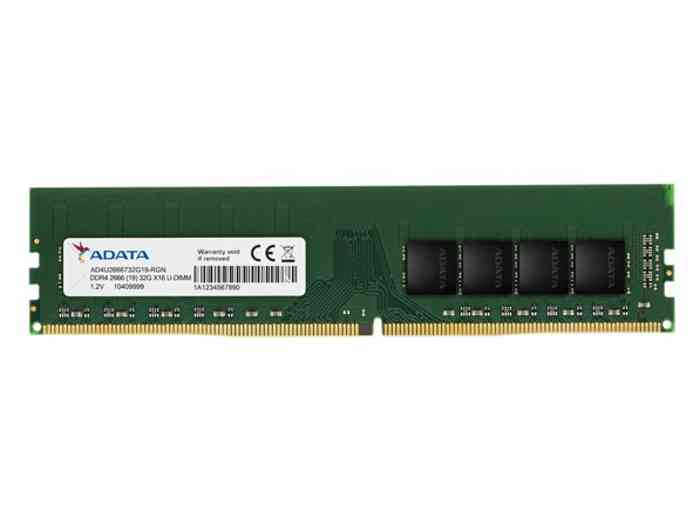

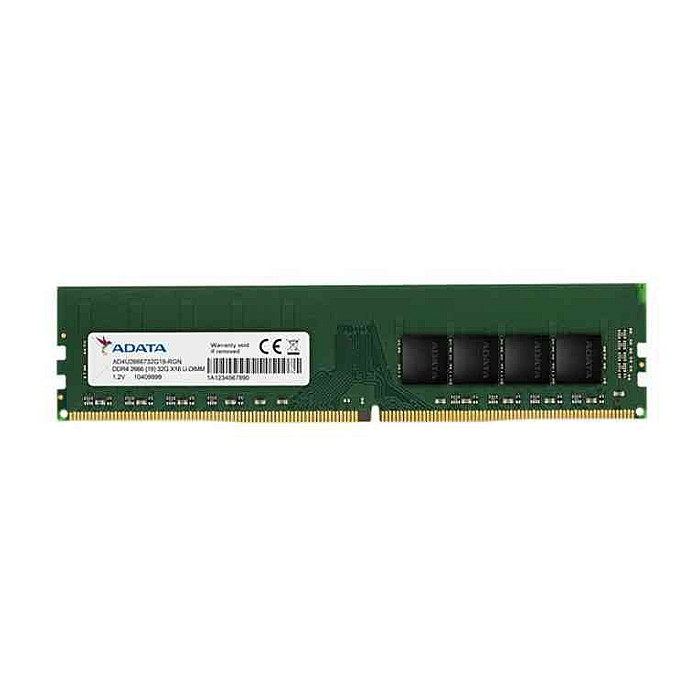

The Adata DDR4 4GB
2666 MHz Desktop RAM. ADATA Premier DDR4 2666
unbuffered-DIMM memory is the latest upgrade solution that supports Intel's
newest platforms for faster data transfer and enhanced power efficiency.
Utilizing a 288-pin design, operating voltage has been reduced from 1.5V on
DDR3 to 1.2V, which not only helps save power by 20% but also boosts transfer
bandwidth speed to 21.3GB/s. Every chip in ADATA memory modules meets strict
JEDEC and RoHS standards, ensuring compatibility, stability, and
environmentally friendly products.
Bus
Speed |
2666
MHz |
Capacity |
4
GB |
Latency |
19-19-19 |
Operating
temperature |
0°C
to 85°C |
Operating
voltage |
1.2V |
Type |
DDR4 |
Warranty |
Lifetime |
• Interface 288-pin
• Density 4GB
• Speed 2666MHz
• CAS Latency CL
19-19-19
• Power supply VDD and
VDDQ = 1.2V±0.06V
• DRAM activation
power supply VPP= 2.5V (+0.25V / -0.125V)
• DRAM spec/VCC DDR4
STD 1.2V
• Operating
temperature 0°C to 85°C
• Warranty Lifetime.
