Additional Feature | AiDisK, Multiple SSIDs, Parental Control, Support MOD IPTV |
Color | Black |
Coverage | Large homes |
Features | Router app MU-MIMO Traffic Analyzer Traditional QoS Parental Control Guest Network : 2.4 GHz x 3, 5 GHz x 3 VPN server : PPTP Server, OpenVPN Server VPN client : PPTP client, L2TP client, OpenVPN client AiDisk file server – Samba and FTP server with account management Dual WAN Beamforming |
Operation mode | Wireless router mode Access point mode Media bridge mode |
OS Support | Windows® 10 Windows® 8.1 Windows® 8 |
Model Name | RT-AC1500UHP |
Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Product Segment | AC1500 enhanced AC performance: 600+867 Mbps |
Data Rate | 802.11a : 6,9,12,18,24,36,48,54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6,9,12,18,24,36,48,54 Mbps 802.11n: up to 600 Mbps 802.11ac: up to 867 Mbps |
Antenna | External 5 dBi antenna x 4 *Antenna type will differ according to local regulations and requirements in each country |
Transmit/Receive | MIMO technology 2.4 GHz 4 x 4 5 GHz 2 x 2 |
Memory | 16 MB Flash 128 MB RAM |
Operating Frequency | 2.4 GHz / 5 GHz |
Ports | RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4 USB 2.0 x 1 |
Button | WPS Button, Reset Button, Power Switch |
LED Indicator | Power x 1 LAN x 4 Wi-Fi x 2 WAN x 1 USB x 1 |
Power Supply | AC Input : 100V~120V(50~60Hz) for US type DC Output: 12 V with max. 1.5 A current |
Product Weight (g) | 348 g |
Management | UPnP, DLNA, IGMP v1/v2/v3, DNS Proxy, DHCP, SNMP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ |
Dimensions | 12.5 x 19.2 x 3 cm (LxWxH) |
WAN | Internet connection type: Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP WAN Bridge support |
Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support |
VPN | IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through |
Warranty | 2 Years Replacement. |
Dual-Band Performance: The Asus RT-AC1500UHP Operates On Both 2.4 GHz And 5 GHz Frequency Bands, Providing Versatility And Minimizing Interference For Optimal Wireless Performance.
Impressive Data Rates: With A Data Rate Of Up To 600 Mbps On The 2.4 GHz Band And 867 Mbps On The 5 GHz Band, This Router Ensures Fast And Reliable Connections For Bandwidth-Intensive Activities.
Coverage For Large Homes: Designed For Large Homes, This Router Comes Equipped With Four External 5 DBi Antennas, Which Extend The Wi-Fi Coverage Area, Eliminating Dead Zones And Ensuring A Strong Signal Throughout Your Home.
MU-MIMO Technology: Featuring MU-MIMO (Multi-User, Multiple Input, Multiple Output) Technology, The Router Can Handle Multiple Device Connections Simultaneously Without Compromising Speed Or Performance.
Memory Capacity: It Boasts 16 MB Of Flash Memory And 128 MB Of RAM, Ensuring Efficient Data Handling And Multitasking Capabilities.
Network Standard Support: The Router Supports Various IEEE Network Standards, Including 802.11a, 802.11b, 802.11g, 802.11n, And 802.11ac, Ensuring Compatibility With A Wide Range Of Devices.
Robust Security: With Support For Encryption Methods Like 64-bit And 128-bit WEP, WPA2-PSK, WPA-PSK, And More, Your Network Remains Secure From Unauthorized Access.
WAN Connection Options: It Offers Flexible WAN Connection Options, Including Automatic IP, Static IP, PPPoE, PPTP, And L2TP, Simplifying Setup To Suit Your Specific Requirements.
WAN Bridge Support: The Router Supports WAN Bridge Mode, Allowing You To Integrate It Seamlessly Into Your Existing Network Infrastructure.

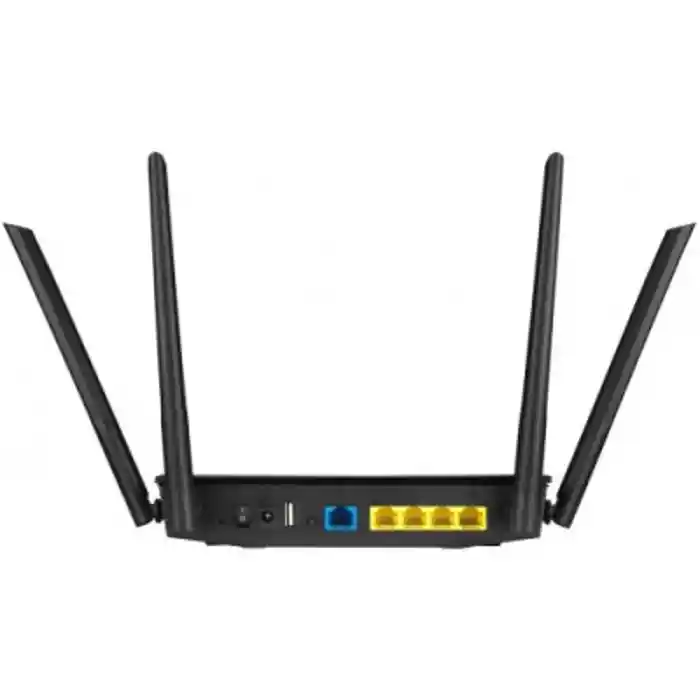

Gigabit Ports: It Features One Gigabit RJ45 Port For WAN And Four Gigabit RJ45 Ports For LAN, Ensuring High-Speed Wired Connections For Devices Like Gaming Consoles And PCs.
USB 2.0 Port: The USB 2.0 Port Enables Easy File Sharing And Allows You To Connect USB Devices Like External Hard Drives Or Printers To Your Network.
Easy Setup Buttons: The Router Includes Convenient Buttons For WPS (Wi-Fi Protected Setup) To Simplify Secure Device Connections, A Reset Button, And A Power Switch For Control And Troubleshooting.
Broad Operating Frequency: It Operates On Both 2.4 GHz And 5 GHz Frequencies, Providing Flexibility And Ensuring Compatibility With A Wide Range Of Devices.
Warranty: The Asus RT-AC1500UHP Is Backed By A 2-year Warranty, Providing Peace Of Mind And Support For Your Networking Needs.
Versatile Application: Suitable For A Variety Of Tasks, From Streaming And Gaming To Office Work, This Router Offers Consistent And Reliable Performance For All Your Online Activities.
