ASUS RT-AC68U Gigabit Wireless ROUTER stands with 2 Pack AiMesh. This Router is a Dual-band whole-home mesh Wi-Fi system for large and multi-story homes. Also, it supports flexible SSID settings, wired inter-router connections, AiProtection network security powered by Trend Micro, and Adaptive QoS. This exclusive Router has an External antenna x 3, 128 MB Flash, 256 MB RAM, 2.4 GHz / 5 GHz op[operating frequency, 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support Encryption with WPS Button, Reset Button, Power Button, Wireless on/off Button.
Here added 110V~240V(50~60Hz) AC Input and 19 V with max. 1.75 A current DC Output Power Supply. It covers Large size homes. AC1900 ultimate AC performance (600+1300 Mbps) and up to 450 Mbps in 802.11n, 600 Mbps in 802.11n TurboQAM, and 1300 Mbps in 802.11ac. Here, I used MIMO Technology. These Router Supported Operating Systems are Windows 10, Windows 8, Windows 8.1, Windows 7, Windows Vista, Windows 2000, Windows ME, Windows XP, Windows Server 2003, Windows Server 2008, Mac OS X 10.1, Mac OS X 10.4, Mac OS X 10.5, Mac OS X 10.6, Mac OS X 10.7, Mac OS X 10.8, Mac OS X, Linux Kernel (Support Ubuntu only), Linux. AiMesh AC1900 WiFi System protects all connected devices from cyber threats and Advanced Parental Controls filter out inappropriate content for your family.
Coverage | Large homes |
Features | Airtime Fairness Adaptive QoS AiProtection Parental Control Guest Network : 2.4 GHz x 3, 5 GHz x 3 VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server VPN client : PPTP client, L2TP client, OpenVPN client Mac OS Backup Enhanced media server (AiPlayer app compatible) - Image: Jpeg - Audio : mp3, WMA, wav, pcm, mp4, lpcm, ogg - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov AiCloud personal cloud service 3G/4G data sharing Printer Server - Multifunctional printer support (Windows only) - LPR protocol support Download Master - Support bt, nzb, http, ed2k - Support encryption, DHT, PEX, and magnet link - Upload and download bandwidth control - Download Scheduling AiDisk file server - Samba and FTP server with account management Dual WAN IPTV support Roaming Assist |
Firewall & Access Control | Firewall: SPI intrusion detection, DoS protection Access control: Parental control, Network service filter, URL filter, Port filter |
Operation mode | Wireless router mode Range extender mode Access point mode Media bridge mode |
Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6 |
Product Segment | AC1900 ultimate AC performance: 600+1300 Mbps |
Data Rate | 802.11n: up to 450 Mbps 802.11n TurboQAM : up to 600 Mbps 802.11ac: up to 1300 Mbps |
Antenna | External antenna x 3 |
Transmit/Receive | MIMO technology 2.4 GHz 3 x 3 5 GHz-1 3 x 3 |
Memory | 128 MB Flash 256 MB RAM |
Operating Frequency | 2.4 GHz / 5 GHz |

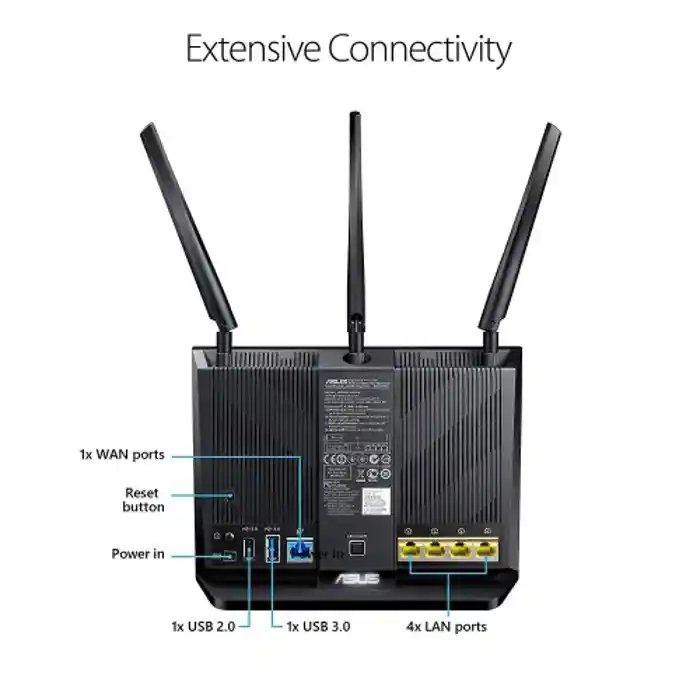

Ports | RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4, RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1 USB 2.0 x 1 USB 3.0 x 1 |
Button | WPS Button, Reset Button, Power Button, Wireless on/off Button |
LED Indicator | Power x 1 Wi-Fi x 2 LAN x 4 WAN x 1 USB x 2 |
Power Supply | AC Input : 110V~240V(50~60Hz) DC Output: 19 V with max. 1.75 A current |
Package content | 2 x RT-AC68U Wireless-AC1900 Dual Band Gigabit Router 2 x RJ-45 cable 2 x Power adapter 2 x QSG 2 x Support CD(user manual and utility) |
Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Universal Repeater, System Event Log |
Dimensions | 220 x 83.3 x 160 ~ mm (WxDxH) (Without Bezel) |
WAN | Internet connection type: Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP Multicast Proxy support Multicast Rate Setting support |
Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support |
Warranty | 2 Years. |
802.11ac WiFi with TurboQAM
The ASUS RT-AC68U features dual-band data rates of up to 1900 Mbps: 1300 Mbps 802.11ac at 5 GHz gives Gigabit-speed wireless data rates, as Broadcom TurboQAM technology super-charges the 2.4 GHz 802.11n performance up to 600 Mbps with compatible devices.
Do more at once with a 1GHz dual-core CPU inside
Powered by a 1 GHz dual-core processor, the RT-AC68U eliminates the performance drops that plague other busy home networks. With ASUS Routers, 4K HD video streaming is always smooth, and crystal clear for VoIP calls, and online gaming is never interrupted.
Enhanced signal range and stability
ASUS AiRadar with exclusive ASUS RF fine-tuning intelligently strengthens wireless connectivity using 802.11ac beamforming for high-power amplification. This ensures extended coverage, dynamic data speed increases, and enhanced stability.
NVIDIA GameStream Ready
Your router is about to have a lot more fun. That’s because it can now stream all your favorite PC games to the NVIDIA SHIELD portable to play anywhere in the house using fast, ultra-reliable NVIDIA GameStream technology.
Move Beyond Inflexible WiFi Systems to AiMesh
AiMesh overcomes the limitations found in other whole-home, mesh-networking Wi-Fi systems by creating a completely flexible whole-home Wi-Fi system tailored to your needs, while continuing to enjoy all the functions of each ASUS router, such as extreme Wi-Fi performance and exclusive advanced networking features.
Seamless, Pain-Free WiFi
AiMesh can create a single, house-wide network name so there's no need to constantly switch between networks as you roam around your home. AiMesh keeps an eye on the signal strength of your device and switches it seamlessly to another source if necessary.
Your Network. Your Choice.
AiMesh enables the creation of separate SSIDs for each frequency band, while still providing seamless roaming within the network. This gives you increased flexibility, allowing you to, for example, dedicate the 5GHz band to gaming devices or a smart TV.
Incredibly Easy, but Incredibly Powerful
With AiMesh, all routers can still use all their features with easy central control of all settings from the ASUS Router mobile app or ASUSWRT. So great features like AiProtection, QoS, and Parental Controls work across the entire network, ensuring that no one can bypass them by connecting to a different router.
