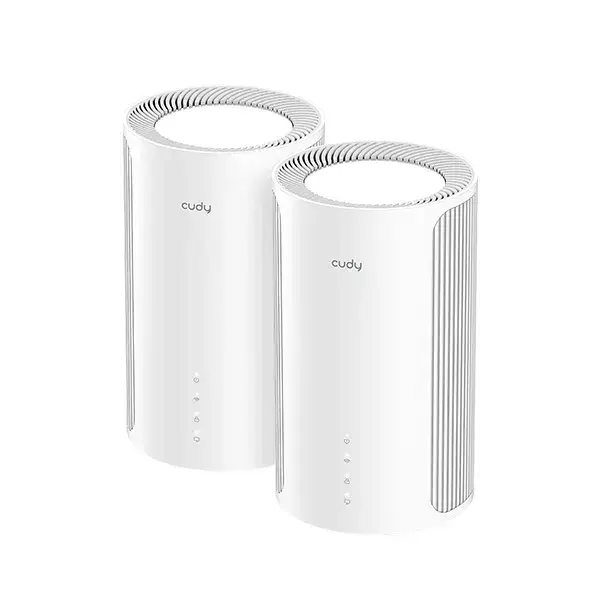

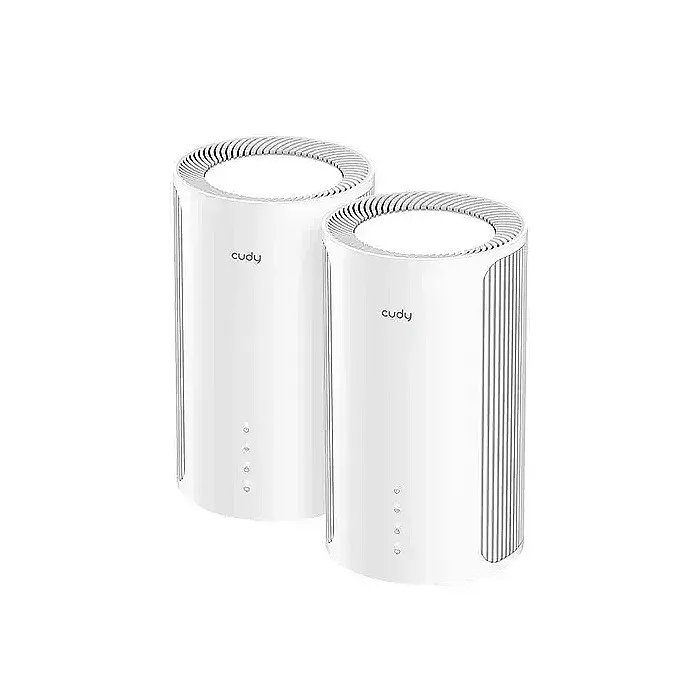

CUDY M11000-(2Pack)-BE11000 2.5G Tri-Band Mesh Wi-Fi 7 System wifi router

CUDY M11000-(2Pack)Tri-Band Mesh wifi router.

CUDY M11000-(2Pack)-BE11000 2.5G Tri-Band Mesh Wi-Fi 7 System is designed to deliver fast, secure, and low-latency internet service to homes and businesses today. Capable of handling up to 2.5 Gbps internet speeds, it provides strong coverage and high performance for gaming, video conferencing, streaming, and smart devices. Powered by a Qualcomm 1.5 GHz Quad-Core processor, this mesh network handles heavy network loads with ease.

The 6-stream tri-band Wi-Fi 7 delivers speeds of 5.7 Gbps + 4.3 Gbps + 688 Mbps, giving a combined bandwidth of up to 11 Gbps. With Multi-Link Operation (MLO), you get higher speeds and lower latency, perfect for speed-hungry and latency-critical applications. With 4× 2.5G Ethernet LAN ports, CUDY M11000 provides expandable wired connections for PCs, game consoles, NAS storage units, and more. It supports a maximum of 200 connected devices, making it perfect for large households and dense offices with many users.

The system is also Cudy Mesh technology-supported, making it easy to extend coverage with extra units. It also features VPN server and client support, which makes your network secure and private. Cudy App and Cloud Control make setup and management easier, where you can always monitor and set up your network anywhere, anytime.

Speacifactions:

Brand: CUDY

Model: M11000

CPU: CPU Details: 1.5 GHz Quad-Core CPU

Memory/Storage Flash/ROM: 128 MB (1 Gbit) NAND DDR/RAM: 512 MB (4 Gbit) DDR4

Wireless 6 GHz Wi-Fi Speed: 5765 Mbps

5 GHz Wi-Fi Speed:

4324 Mbps (240 MHz)

2882 Mbps (160 MHz)

2.4 GHz Wi-Fi Speed: 688 Mbps

6 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)

Wi-Fi Antennas: 6× Fixed

FEM or PA/LNA:

- 6 GHz: 2× High-Power

- 5 GHz: 2× High-Power

- 2.4 GHz: 2× Standard

Beamforming: True

Range Performance:

Max: 260 m (853 ft)

Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials.

Refer to the Wall Performance specifications for placement suggestions.

Wall Performance:

Two wooden walls with thickness < 10 cm (4'')

One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

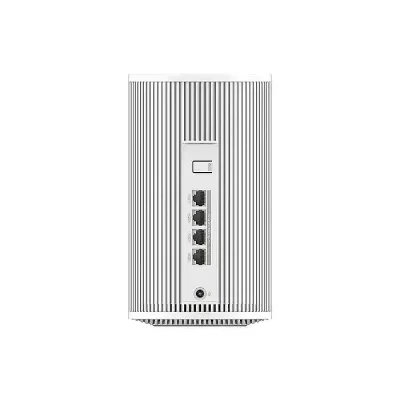

Interfaces:

2.5G RJ45 Ports: 4

Ethernet Notes: 1× WAN port, the rest are LAN ports

LED:

- System

- LAN

- Wi-Fi - Mesh

Physical Buttons:

- WPS Button

- Reset Button

Power Input: DC Jack

Power Power Methods: DC

DC Input: 12V 2A

Power Adapter:

- Input: 100 ~ 240 V, 50/60 Hz AC

- Output: 12V 2A DC

Max Power Consumption (W): 22W

Idle Power Consumption (W): 12W

Reliability Environment:

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

Mechanical Installation: Desktop

Dimension:

Φ116×202 mm

Φ4.57×7.95 inches

Wireless Wi-Fi Standards: Wi-Fi 7

Max Wi-Fi Modulation: 4K-QAM

Wi-Fi Efficiency:

- MLO

- MRU

- Puncturing

- OFDMA

- MU-MIMO

- BSS Color

Max Capacity: 384

Recommended Client Upper Limit: 200

Max Wi-Fi Channel Width: 320 MHz

Wi-Fi Security: WPA/WPA2/WPA3

Guest Network: 2.4 GHz, 5 GHz, 6 GHz

WPS: True

Indoor Coverage Reference:

2 Pack: 250 m² (2700 sq ft)

3 Pack: 350 m² (3700 sq ft)

General Operation Modes:

- Wi-Fi Router

- Access Point

- Range Extender

- WISP

- Client

Mesh: Cudy Mesh

Mesh Backhaul:

- Wireless Backhaul

- Wired Backhaul

Multi-Band Backhaul: True

WAN Mode:

- DHCP

- Static IP

- PPPOE

- PPTP

- L2TP

Network QoS: Per-User Rate Limiting

DHCP:

- Address Reservation

- DHCP Client List

- Server

IP Versions: IPv4/IPv6

IPv6 Protocols:

- Relay

- Dynamic (SLAAC/DHCPv6)

- Static (Fixed IP)

- Passthrough

- 464XLAT

- MAP-E

- DS-Lite

IPTV/VLAN:

- Bridge

- Tag VLAN

- VoIP VLAN

- IPTV VLAN

TTL Customization:

- Extend

- Spoof

- Custom

IGMP:

- IGMP Proxy

- IGMP Snooping

Forwarding:

- Port Forwarding

- Port Triggering

- UPnP

- DMZ

Firewall:

- SPI Firewall

- DoS Protection

- Block PING

Application Layer Gateway:

- IPSec Passthrough

- L2TP Passthrough

- PPTP Passthrough

- FTP Passthrough

- TFTP Passthrough

- H323 Passthrough

- SIP Passthrough

- RTSP Passthrough

Utilities VPN Server:

- WireGuard

- OpenVPN

- IPsec

- Zerotier

- PPTP

- L2TP

VPN Client:

- WireGuard

- OpenVPN

- IPsec

- Zerotier

- PPTP

- L2TP

DNS Options:

- DNS over TLS

- Manual DNS

- Rebind Protection

- Override Clients' DNS

DNS over TLS Providers:

- Cloudflare

- Google

- Quad9

- Custom

Wake on LAN: True

Online Detection: True

Management Parental Controls:

- Profiles Settings

- Offline Time

- Online Time

- Pause the Internet

- Web Filter

All Devices Management:

- Wi-Fi Time Schedule

- MAC Filter

- IP/MAC Binding

Per-Devices Management:

- Internet On/Off

- VPN On/Off

- Online Time Schedule

- Device Rename

Content Management:

- Domain Filter

- IP Filter

System LED Control: True

Local Control Method:

- Config Web Page

- App Control

Remote Control Method:

- Config Page via HTTPS

- App Control

- TR069/TR098/TR111/TR143/TR181

Firmware Upgrade:

- Local Update

- App (Over the Air)

- Online Update

Reliability:

- Timed Reboot

- Backup and Restore

Diagnostic Tools:

- Diagnosis

- Ping

- Traceroute

- NSLookup

- System Log

Languages:

- English

- Bengali

- Catalan

- Czech

- German

- Greek

- Spanish

- French

- Hebrew

- Croatian

- Hungarian

- Italian

- Japanese

- Khmer

- Korean

- Dutch

- Norwegian

- Polish

- Portuguese

- Romanian

- Russian

- Slovak

- Swedish

- Thai

- Turkish

- Ukrainian

- Vietnamese

- Simplified Chinese

- Traditional Chinese

Dashboard Panel:

- Internet Status

- Mesh Status

- Devices Management

- WAN Status

- LAN Status

- WISP Status

- Wi-Fi Status

- VPN Status

- DHCP Server Status

- System Version

Charts:

- Mesh Topology

- Internet Speed

- WISP Speed

- Wi-Fi Speed

Dimensions Retail Package Dimension:

- 1-Pack:

313×152×132 mm

12.32×5.98×5.2 inches

- 2-Pack:

366×251×132 mm

14.41×9.88×5.2 inches

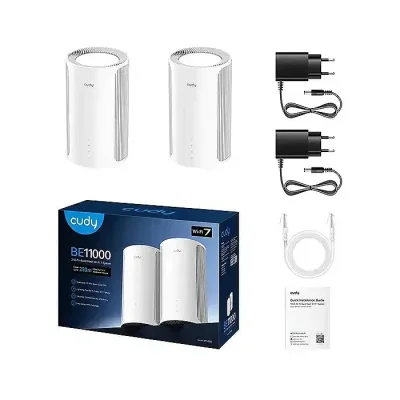

Included in the Box M11000

Power Adapter

Ethernet Cable

Installation Guide

Certification FCC, CE

Warranty: 01-Year Brand Warranty.
