Brand | Netgear |
Model | RBR20 |
Warranty | Yes |
Frequency | 2.2 Gbps |
Standards | IEEE® 802.11 b/g/n 2.4GHz 1024QAM support IEEE® 802.11 a/n/ac 5GHz 1024QAM support |
Security | Standard |
Ports | Standard |
Buttons | Standard |
Antenna | Four (4) high-performance internal antennas |
Speed | 2200 Mbps |
ROUTER FEATURES | |
Antenna | Four (4) high-performance internal antennas |
Data Rate | WIFI PERFORMANCE AC2200 (866 + 866 + 400Mbps) |
Encryption | WPA/PSK2 |
Frequency | 2.2Gbps |
Interface | Two (2) 10/100/1000Mbps Gigabit Ethernet ports One (1) WAN & one (1) LAN |
CONNECTOR & PORTS | |
Wireless | Tri-band |
Network Standard | IEEE® 802.11 b/g/n 2.4GHz 1024QAM support IEEE® 802.11 a/n/ac 5GHz 1024QAM support |
PHYSICAL SPECIFICATION | |
Dimensions | 5.6 x 2.4 x 6.6in |
Weight | 1.05lb |
PHYSICAL SPECIFICATIONS | |
Color | White |
WiFi Coverage: 2,000 sq. ft.
Orbi Router (AC2200): Four (4) high-performance internal antennas with high-powered amplifiers
Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands
MU-MIMO is capable of simultaneous data streaming to multiple devices
Powerful Quad-Core 710MHz processor
AC2200 Tri-Band WiFi: 2.4GHz (400Mbps†) + 5GHz (866Mbps†) for WiFi devices to connect to the Internet
5GHz (866Mbps†) dedicated WiFi link for faster data connections between the Orbi router and Orbi Satellite

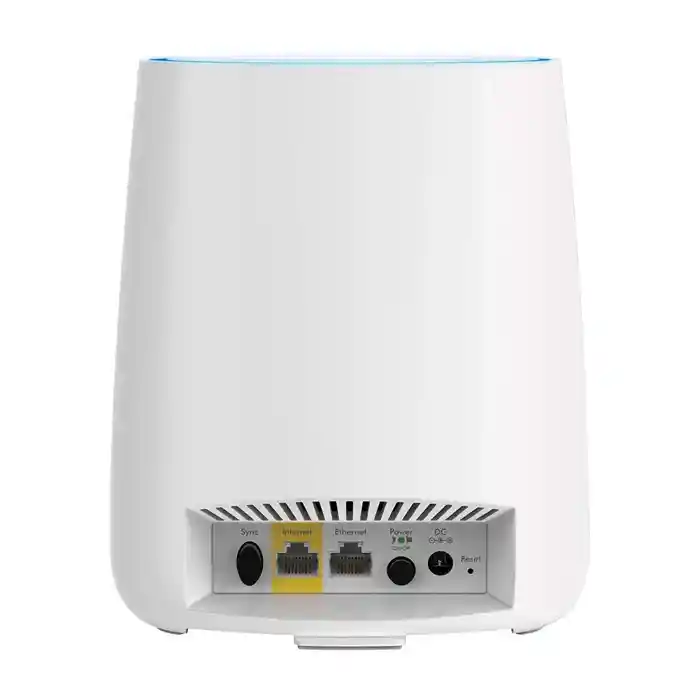

Ports: Two (2) 10/100/1000Mbps Gigabit Ethernet ports
One (1) WAN & one (1) LAN
Memory: 256MB flash and 512MB RAM
Works with Amazon Alexa & the Google Assistant
Security: Comprehensive anti-virus & data theft protection for your PC, Mac® and mobile devices with NETGEAR Armor™
WPA/WPA2-PSK support
Guest WiFi Network makes it easy to set up separate & secure Internet access for guests
Circle® Smart Parental Controls to manage content and time online for all your devices. Learn more at netgear.com/circle
Featuring four internal antennas and a powerful 710 MHz quad-core processor, the Orbi RBR20 delivers 802.11ac Wi-Fi speeds of up to 400 Mb/s over the 2.4 GHz signal and 866 Mb/s through the 5 GHz frequency. The tri-band mesh router communicates with satellites using a dedicated 5 GHz, 866 Mb/s signal for fast and consistent speeds.
The Orbi RBR20 uses MU-MIMO technology to simultaneously communicate with multiple devices while implicit and explicit Beamforming help to maintain strong connections over long distances, covering up to 2,000 square feet.
Increase your Wi-Fi coverage by adding compatible Orbi satellites to the network.
Use the Orbi mobile app on your iOS or Android mobile device to set up and configure the Orbi RBR20 router, pause internet connectivity for specified devices, test your internet speed, and set up parental controls.
Use the Circle Smart Parental Controls from the Orbi app to set up bedtimes and time limits for your children in addition to filtering content for added peace of mind. You can also reward children by extending the cut-off times.
Circle® Smart Parental Controls are a smart way for families to manage content and time online, on any connected device. Using the Circle app's smart parental controls you can easily manage content and time online for each family member. Set Time Limits on daily internet time for apps, and websites. Pause the internet by device or by the user with the press of a button. Set Bedtime for each family member and their devices.
Orbi works with your Internet service provider right out of the box. Setup is extremely quick and intuitive. Just connect to the modem, and either through a browser or a very simple Orbi app to set up whole home WiFi in just a few minutes. Orbi intelligently takes care of the network making sure that your devices are connected to the fastest available WiFi.
Automatic firmware updates keep the router up-to-date with the latest features and security fixes.
“Alexa, ask NETGEAR to turn on guest WiFi.” Easily control your router using voice commands using Amazon Alexa. To enable the router to work with Amazon Alexa, you can use the command “Alexa, enable the NETGEAR skill,” or you can manually link the NETGEAR skill to your Alexa app.
“Ok Google, turn on the guest network.” You can use voice commands using Google Assistant to configure your router’s settings. You can also ask Google Assistant to tell you the router’s WiFi setting and guest network password.
