TP-link Deco M9 Plus is the simplest way to guarantee a strong Wi-Fi signal in every corner of your home up to 6,500 square feet. Enjoy fast and secure Tri-Band Wi-Fi no matter how many devices you have. Deco M9 Plus connects and controls your smart home devices as a hub, no need for an additional hub. Three separate Wi-Fi bands deliver super-fast, stable connections to devices in every room of your home. More bandwidth is freed up with dedicated wireless links between Deco units. Say goodbye to lag with the AC2200 Wi-Fi system.
Deco M9 Plus uses not only 5G_1(867Mbps) as wireless backhaul but also 5G_2(867Mbps) and 2.4G(400Mbps) as backhaul while traffic gets heavy, delivering speeds over 1000Mbps which is ideal for your gigabit fiber. With network speeds three times faster than the previous generation routers thanks to 802.11ac wireless technology, Deco can provide lag-free connections for over 100 devices. Deco M9 Plus acts as a smart home hub, bringing all your products together in one easy-to-use app. Set interactions between Zigbee, Bluetooth, and Wi-Fi devices. With Deco M9 Plus, enjoy the magic of the smart home in every room. TP-Link smart devices, GE, Kwikset, and other leading brands are supported, making possible a range of interactions between bulbs, locks, cameras, and more.
TP-Link HomeCare ensures every device on your network remains protected, with a threat database updated live by Trend Micro. Powerful parental controls can limit online time and block inappropriate content according to unique profiles created for each family member. Built-in Antivirus helps you defend against malicious websites and guard your online payment.
WIRELESS | |
---|---|
Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz Bluetooth 4.2 ZigBee HA 1.2 |
WiFi Speeds | AC2200 5 GHz: 867 Mbps (802.11ac) 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n) |
WiFi Range | 4-6 Bedroom Houses (3-pack)TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage8× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming |
WiFi Capacity | Medium Tri-Band Distribute devices to different bands for optimal performance4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients |
Working Modes | Router Mode Access Point Mode |
HARDWARE | |
---|---|
Processor | Qualcomm 717 MHz Quad-core CPU |

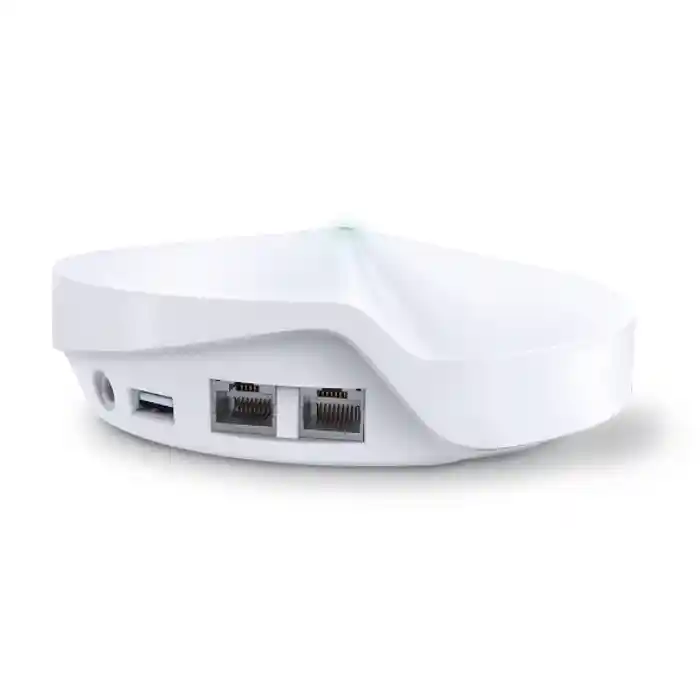

Ethernet Ports | 2× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing |
Buttons | Reset Button |
SECURITY | |
---|---|
WiFi Encryption | WPA-Personal WPA2-Personal |
Network Security | SPI Firewall Access ControlHomeCare™ Antivirus \Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
SOFTWARE | |
---|---|
Protocols | IPv4 , IPv6 |
Service Kits | HomeCare™ |
Parental Controls | HomeCare™ Parental Controls Custom Profiles Content Filtering URL FIltering Time Limit Time Schedule (Bed Time) Log Insight Usage Monitor Monthly Reports |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | HomeCare™ QoS QoS by Device QoS by Application |
Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DDNS | TP-Link |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link |
Management | Deco App |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 5.7 × 5.7 × 1.8 in (144 × 144 × 46 mm) |
Package Contents | Deco M9 Plus (3-pack) 3 Deco M9 Plus Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation GuideDeco M9 Plus (2-pack) 2 Deco M9 Plus Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide Deco M9 Plus (1-pack) |
OTHERS | |
---|---|
System Requirements | Android 4.4 or later iOS 9.0 or later |
Certifications | CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
Whole-Home Coverage: Deco M9 Plus (3-pack) uses a system of units to achieve seamless whole-home WiFi coverage up to 6,500 sq. ft. eliminating weak signal areas once and for all!*
Tri-Band Speeds: Reach speeds up to 2200 Mbps with the tri-band Deco M9 Plus.*
TP-Link Mesh Technology: With advanced Deco Mesh Technology, units work together to form one unified whole-home network with the same network name. Deco automatically chooses the best connection for your device as you move through your home
Dynamic Backhaul: A dynamic backhaul of up to 1.5 Gbps ensures you have fast, stable connections throughout your home.
Built-in Smart Hub: Deco M9 Plus acts as a hub for your wireless and smart home devices. Adjust settings and create interactions from one app.
Connect More Devices: Deco can handle traffic from even the busiest of networks, providing lag-free WiFi connection for over 100 devices.*
TP-Link HomeCareTM: A free lifetime subscription to TP-Link HomeCare protects your family with personalized security features, including Parental Controls, built-in Antivirus, and Quality of Service (QoS).**
Easy Setup: Setup is easier than ever — The Deco app will walk you through setup step by step.
