TP-Link TL-WA850RE 300Mbps Universal Wi-Fi Range Extender/Signal Booster

TP-Link TL-WA850RE 300Mbps Universal Wi-Fi Range Extender/Signal Booster.

Specifications:

HARDWARE FEATURES:

Interface: 1 * 10/100M Ethernet Port (RJ45)

Buttons: RE (Range Extender) Button, Reset Button

Power Consumption: About 3W

Antennas: 2 * internal

Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)

WIRELESS FEATURES:

Frequency: 2.4~2.4835GHz

Signal Rate:

11n: Up to 300Mbps (dynamic)

11g: Up to 54Mbps (dynamic)

11b: Up to 11Mbps (dynamic)

Reception Sensitivity :

270M: -68dBm@10% PER

130M: -68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

Transmit Power: < 20 dBm (EIRP)

Wireless Modes: Range Extender

Wireless Functions:

WMM (Wi-Fi Multimedia)

Wireless MAC Address Filtering

Wireless Statistic

Domain Login Function

Wireless Security:

64/128/152-bit WEP

WPA-PSK / WPA2-PSK

OTHERS:

Certification: CE, RoHS

Package Contents:

300Mbps Universal Wi-Fi Range Extender TL-WA850RE

RJ-45 Ethernet Cable

Resource CD

Quick Installation Guide

System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Environment:

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing.

Features:

Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

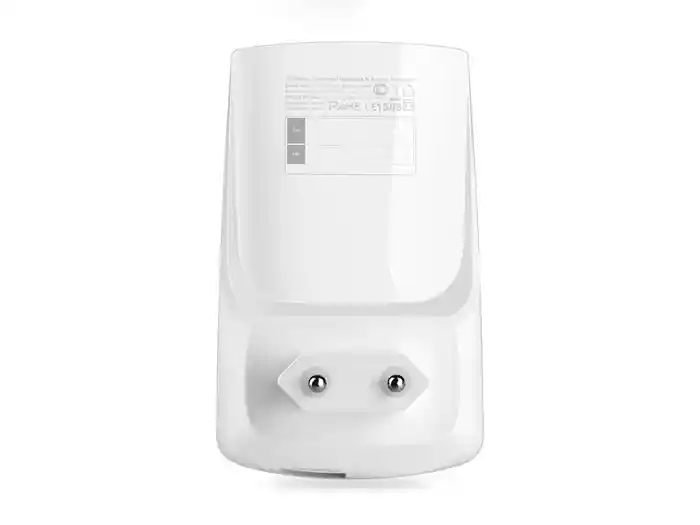

Miniature size and wall-mounted design make it easy to deploy and move flexibly

Easily expand wireless coverage at a push of Range Extender button

The Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

Tether App allows easy access and management using any mobile device

LED Control function includes a Night Mode for peaceful sleep.

Easy Setup and Flexible

PlacementPress the WPS button on your router and the Range Extender button on your 850RE within minutes to easily connect to the network. Once connected with an existing router, you can unplug and plug the TL-WA850RE back into a location for the best signal quality and coverage in your house, without needing to configure the extender again.

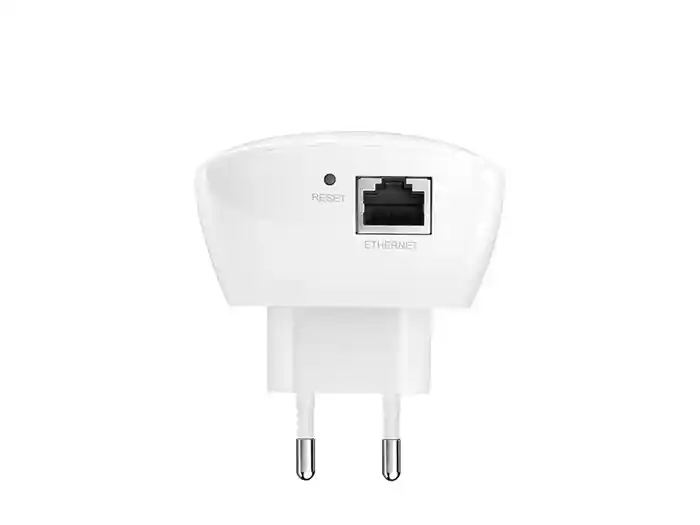

Ethernet Bridge

The TL-WA850RE’s single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray® players, gaming consoles, DVRs, and Internet TVs. At the same time, the device can share the wireless

Smart Signal Indicator Light

5 signal lights show the strength of the signal that TL-WA850RE receives from the existing router, which can help to find the right location to place the range extender.
