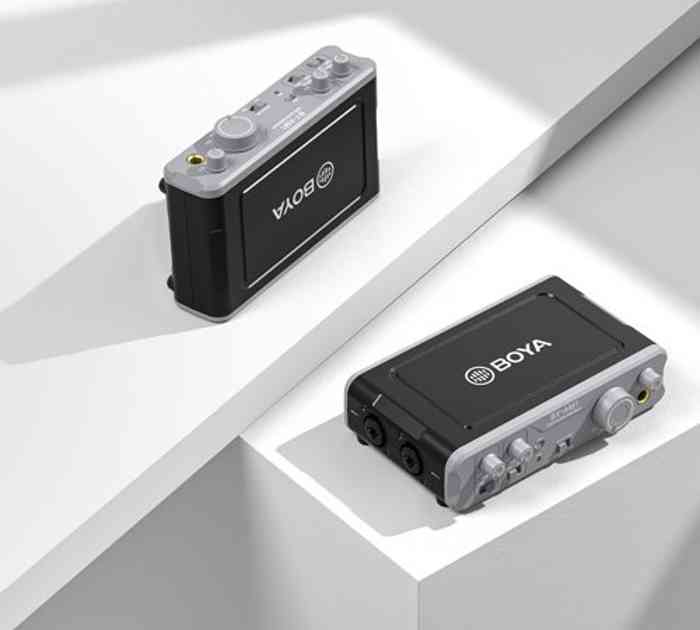

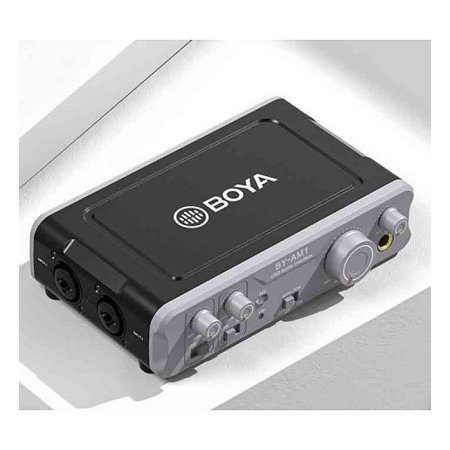

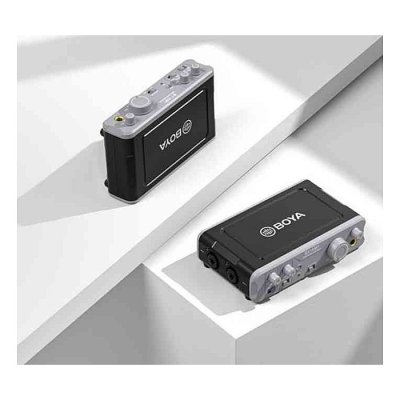

The BY-AM1, a
dual-channel audio mixer, provides you with a compact audio mixing solution for
6.35mm line-in devices or any XLR microphones (Such as BY-M1000/BY-BY-BM58),
which allows you to easily mount and control input devices, and transmit the
output signal to your computer.
Designed for people
who need a quality recording interface on a budget, the Boya BY-AM1 Dual-Channel
USB 2 Audio Mixer is a dual-channel interface and mixer that provides both
1/4" and XLR connections for a variety of sources, including microphones
and line-level instruments. Using this interface, which connects to your
computer over USB, you can record audio to your computer, where you can edit or
mix it later in your favorite software. This device works for home-recording
music and podcasts.
Brand | Boya |
---|---|
Warranty | 2 Years |
Microphone Inputs | Line Inputs | Instrument inputs | |
Frequency Response: | 20Hz-20kHz±0.1dB | 20Hz-20kHz±0.1dB | 20Hz-20kHz±0.1dB |
THD: | / | / | |
S/N | / | / | |
Maximum Input Level: | 9dBu(at a minimum gain) | 15dBu(at a minimum gain) | 8dBu(at a minimum gain) |
Gain Range: | / | 50dB | / |
Impedance: | / | 47KΩ | / |
Headphone outputs | Line/monitor outputs | |
Frequency Response: | 75dB | 80dBU |
THD: | <0.01% | <0.01% |
S/N | 6dBu | 10dBu |
Maximum Input Level: | <10Ω | 470Ω |
Sampling Rates: | 44.1kHz,48kHz,88.2kHz,96kHz,176.4kHz,192kHz | / |
USB Connection | USB 2.0(USB-B connector) | / |
Power Requirements: | Powered by computers | / |
Power Supply: | 48V phantom power | / |
Dimensions: | 160*105*41.5mm(6.3*4.1*1.6) |
Weight | 408.5g(1.44oz) |
Features:
Thanks to built-in 6.35mm/XLR combo inputs, The BY-AM1
can easily accept signals directly from XLR microphones or electric
instruments, like guitar and bass, etc.
The BY-AM1 can support 44.1k-192kHz sampling rates audio
without any sound compromise when connecting to an XLR microphone and
instrument input devices.
With a 6.35mm headphone monitoring jack and supplied
6.35mm to 3.5mm audio adapter, The BY-AM1 allows you to hear your input signal
through the headphones without any distracting echo or latency.
The BY-AM1 can provide 48V phantom power for the XLR
passive microphone. Built-in 1/4″ mounting screw on the base can be attached to
a tripod and other accessories.
The BY-AM1 provides you with a compact audio
recording solution for 1/4" line-in devices, instruments, or XLR
microphones, thanks to its combination of XLR-1/4" inputs.
The device can support a 44.1 to 192 kHz
sampling rate, making it suitable for a wide range of recording applications,
from CD quality (44.1 kHz) to broadcast standards (48 kHz) to high-res
recording (96 kHz).
This interface can provide 48V phantom power
for condenser microphones. The power comes from your host device.
Thanks to the 1/4" headphone monitor
jack and supplied 3.5mm to 1/4" adapter, you can listen to your live input
signal with no distracting echo or latency.
A built-in 1/4" mounting screw on the base can be attached to the tripod and other accessories.
