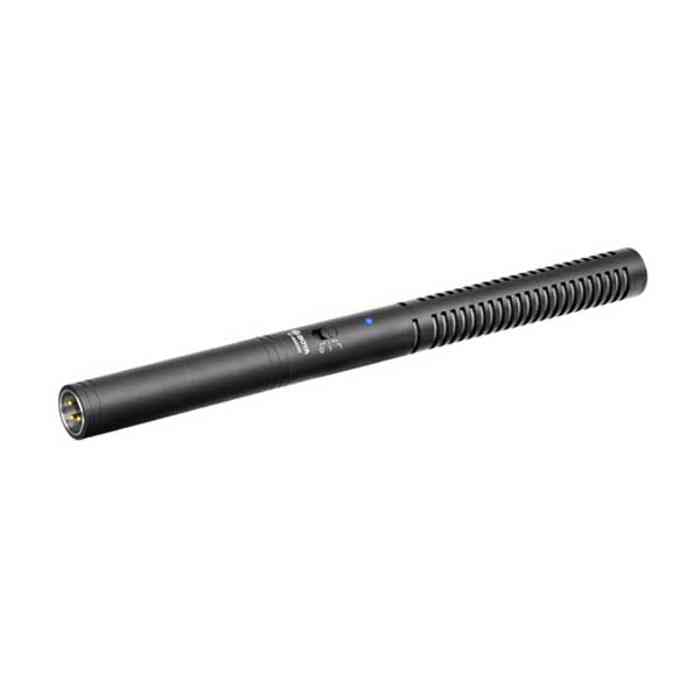

BOYA BY-BM6060 Super-Cardioid Professional Shotgun Microphone
The BY-BM6060 focus on super-cardioid characteristics and resistance to low-noise circuitry noise, it’s well-suited to a variety of applications from independent films, and TV programs to documentaries. Initiate switchable high-pass filter control to roll off the low-frequency noise at 150Hz such as rumbles and traffic. ITS 3-pin XLR output is in compliance with the 24-48V phantom power supply. When your devices aren’t phantom powered, the BY-BM6060 can be powered by one AA battery In addition.
Sturdy and Lightweight
Built with an aluminum-alloy housing, the BY-BM6060 offers ruggedness while remaining lightweight, a welcome combination for comfortable use on boom poles.
Super cardioid Polar Pattern
The BY-BM6060’s super-cardioid polar pattern delivers focused responsiveness in front of the mic, moderate rejection at the rear, and enhanced attenuation at the sides, making it well suited for recording subjects outdoors or in acoustically treated rooms.
Full-Range Frequency Reproduction
The wide 60 Hz to 20 kHz frequency response of the microphone allows it to accurately capture speech, ambient sounds, and more. The switchable high-pass filter attenuates low frequencies below 150 Hz to help you control difficult bass issues such as rumble and traffic noise.
Battery or Phantom Powered
Able to be run on a single AA battery or 12 to 48 VDC phantom power, the BY-BM6060 can be used with DSLRs, mirrorless cameras, professional camcorders, field recorders, and handheld audio recorders. The XLR 3-pin output provides a balanced, high-quality connection point.

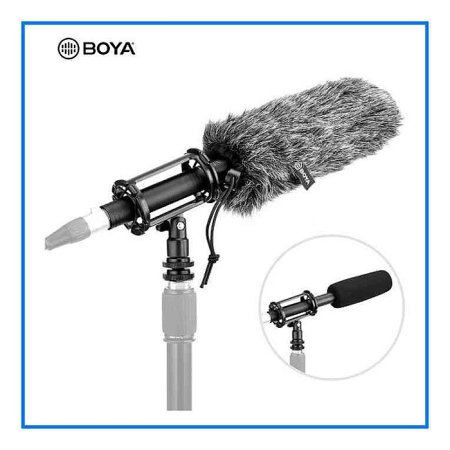

Wind Protection
Use the included foam windscreen to control noise from light breezes or indoor turbulence from fans. Switch to the supplied furry windshield for enhanced wind noise reduction when recording outdoors.

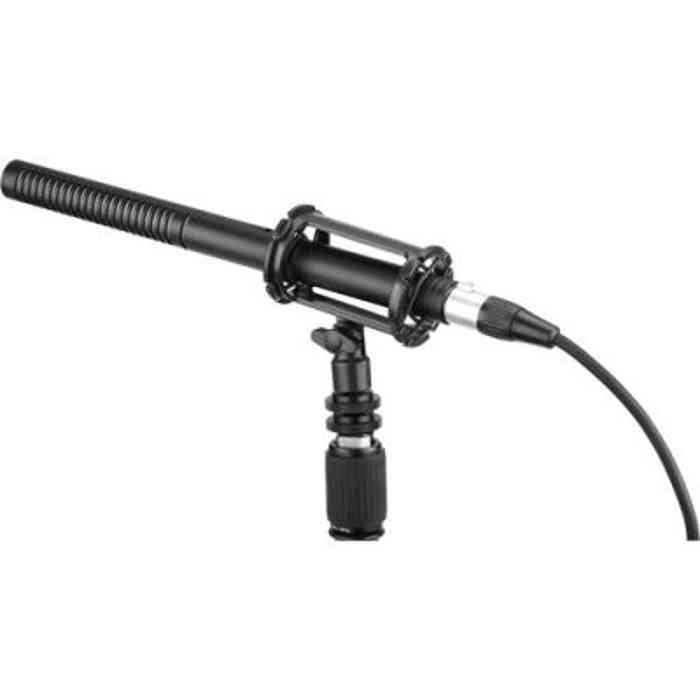

Shock mount Inhibits Handling Noise
The BY-BM6060 comes with a shock mount that decouples the mic from your camera, boom pole, or stands, thereby inhibiting vibrations and handling noise.
Specifications:
Microphone
Form Factor | Stand/Boom Mount |
Sound Field | Mono |
Operating Principle | Pressure Gradient |
Capsule | 1 x Condenser |
Polar Pattern | Supercardioid |
Orientation | End Address |
Circuitry | Solid-State |
Pad | None |
High-Pass Filter | 150 Hz |
Tone Adjustment | None |
Indicators | 1 x Blue Single LED (Power) |
On-Board Controls | High-Pass Filter, On/Off |
Windscreen | Foam, Windsock/Windjammer (Included) |
Performance
Frequency Range | 60 Hz to 20 kHz |
Impedance | 200 Ohms |
Sensitivity | -36 dBV/Pa at 1 kHz |
Signal-to-Noise Ratio | 80 dB |
Connectivity
Output Connectors (Analog) | 1 x XLR 3-Pin Male (on Mic) |
Headphone Connector | None |
Power
Operating Voltage | 12 to 48 V (Phantom Power) 1.5 V (Battery Power) |
Battery Type | 1 x AA |
Physical
Mounting | Shockmount (Included) |
Construction Material | Aluminum |
Dimensions | ø: 0.87 x L: 11.02″ / ø: 22 x L: 280 mm |
Weight | 4.6 oz / 130 g |
Packaging Info
Package Weight | 1.35 lb |
Box Dimensions (LxWxH) | 13.5 x 5 x 3″ |

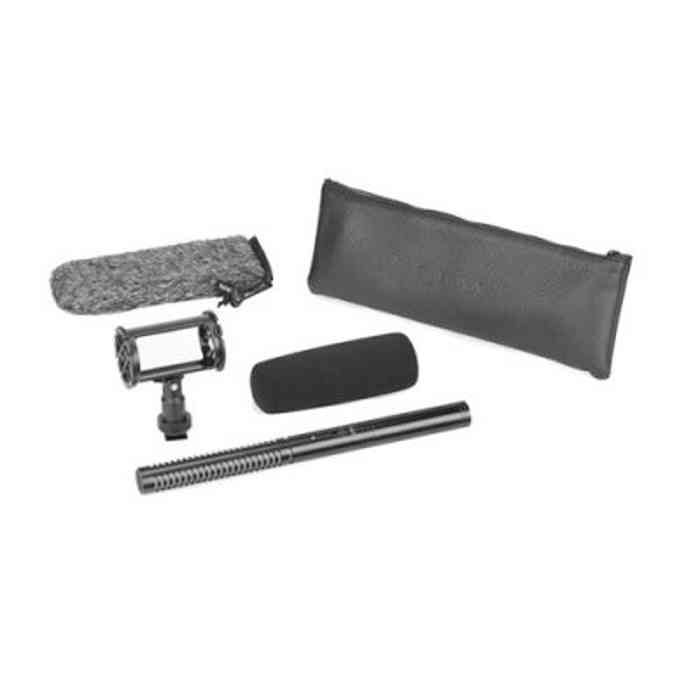

In the Box:
- BOYA BY-BM6060 Shotgun Microphone
- Shockmount
- Foam Windscreen
- Furry Windshield
- Zipper Bag
