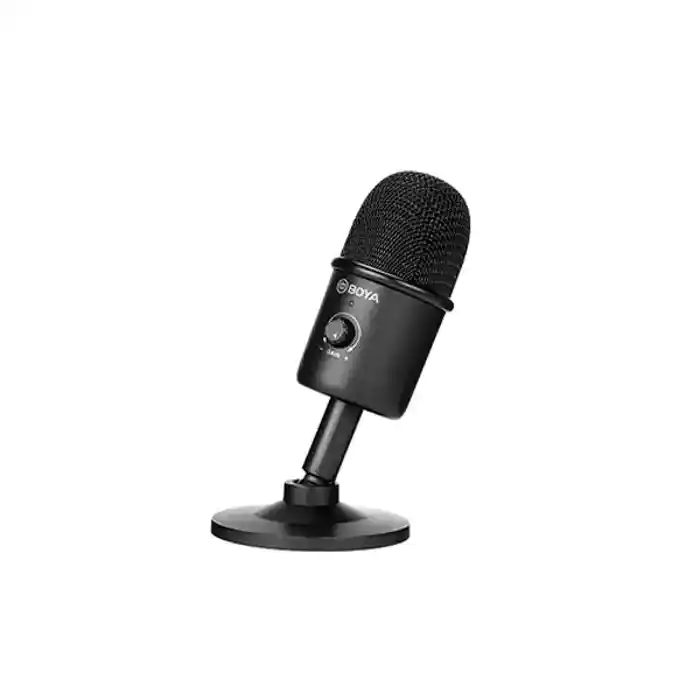

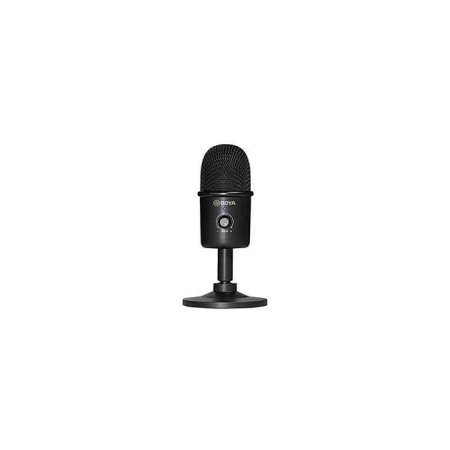

Boya BY-CM3 USB Microphone.
The BOYA BY-CM3 is a condenser USB microphone to deliver crystal-clear and natural audio. Due to the cardioid polar pattern, the BY-CM3 can capture the sound directly into the mic while rejecting off-axis noise and minimizing room tone effectively. It is ideal for streaming, podcasting, vocals, instrument recording, and more. The BY-CM3 features a combination of 20-20KHz wide frequency response and 24bit/48KHz resolution. It captures more details of your voices and instruments, which makes your recordings to another level. Users can adjust the gain through the control knob easily, tailoring the output audio signal to their devices. The microphone stand allows a 15-degree inclination in all directions, setting the mic at a suitable angle and guaranteeing the best sound pickup effect. With an included charging cable, it's quite easy to get started. Just plug and you're ready to get to work.
General Introduction
The BOYA BY-CM3 is a USB condenser microphone, compatible with most Android devices, and tablets with USB-C ports,s, and Mac/Windows computers.
Thanks to its cardioid polar pattern, the BY-CM3 clearly captures speech in front of the mic while effectively reducing unwanted background noise. It is ideal for streaming, podcasting, vocals, instrument recording, and more.
Cautions:
- If you do not intend to use the microphone for a long period of time, please remove the USB cable.
- Do not touch the microphone while recording, as this will cause noise to be recorded.
- Do not let the microphone close to high-voltage equipment or to devices that emit strong electromagnetic fields; otherwise, it may cause the noise to be recorded.
- Do not use or leave the microphone in hot, humid places.
Package Contents
- USB-C to USB-A Charging Cable (2m)x1.
Product Structure
![BOYA-BY-CM3-Desktop-USB-Microphone-1](https://manuals.plus/wp-content/uploads/2022/04/BOYA-BY-CM3-Desktop-USB-Microphone-1.png?ezimgfmt=rs:526x438/rscb1/ng:webp/ngcb1)
- Status indicator
- Gain control
- USB-C port
- Adjustable mic stand.
Mounting the BY-CM3 to a boom arm.
- Unscrew to remove the microphone from the desktop stand.
![BOYA-BY-CM3-Desktop-USB-Microphone-2](https://manuals.plus/wp-content/uploads/2022/04/BOYA-BY-CM3-Desktop-USB-Microphone-2.png?ezimgfmt=rs:201x393/rscb1/ng:webp/ngcb1)
- Mount the microphone to a boom arm through its 5/8″ threaded hole.
Note: the boom arm is not included.
How to use![BOYA-BY-CM3-Desktop-USB-Microphone-4](https://manuals.plus/wp-content/uploads/2022/04/BOYA-BY-CM3-Desktop-USB-Microphone-4.png?ezimgfmt=rs:478x405/rscb1/ng:webp/ngcb1)
- Connect the microphone to your computer with the supplied cable. (Blue indicator will light up. )
- Adjust the microphone at your desired angle.
- Turn the knob to adjust the microphone gain according to your needs.
- You are ready to record.
Features:
High-quality desktop microphone with USB-C connectivity
- Compatible with most Android devices, tablets with USB-C
- port and Mac/Windows computers
- Adjustable integrated microphone desktop stand
- Plug and play, easy to operate.
Specification:
Polar Pattern: Cardioid
Frequency Response: 20-20KHz
Sensitivity: 37dB(0dB=1V/Pa,1kHz 1Pa)
Power Consumption: 5V/28mA
Signal to Noise Ratio: 75 dB
Maximum SPL: 110dB
Microphone's Gain Control: 0~43.5dB
Sample Rate: 48KHz
Bit Depth: 24bit
Audio Output: Type-C
Size: 90.5x90.5x172.5 mm
Weight: 570g.
![BOYA-BY-CM3-Desktop-USB-Microphone-5](https://manuals.plus/wp-content/uploads/2022/04/BOYA-BY-CM3-Desktop-USB-Microphone-5.png?ezimgfmt=rs:567x189/rscb1/ng:webp/ngcb1)
