Custom Omnidirectional Capsule For High-Quality Audio Pickup.
Designed with a custom omnidirectional signal capsule, it captures broadcast-quality sound from a 360-degree range and delivers it to your recording device via its 6m(20’) shielded cable. With the improved sensitivity, signal-to-noise, and flat frequency response, BY-M1 allows you to record every last audio detail with lower self-noise.

Two Recording Modes For Different Using Scenarios.
Featuring a 3.5mm 4-pole TRRS output connector, you can connect BY-M1 to your camera or camcorder under “camera” mode, and also connect it to your smartphone or PC when switching to “OFF/Smartphone mode.

Every Necessary Accessory Is Included.
In terms of accessories, you will find a lapel clip, foam windscreen all in the pack, an LR44 battery for using “camera” mode,  a 1/4" audio adapter for the compatible further device, and a carrying pouch to provide secure protection.



Using the microphone:


• For smartphones.

  Switch off the microphone. Slide the ON/OFF up to OFF/Smartphone.

  The power is shut down.

• For DSLR, Camcorders, Audio recorders, PC, etc.

  Switch on the microphone. Slide the ON/OFF up to ON.




Specifications:

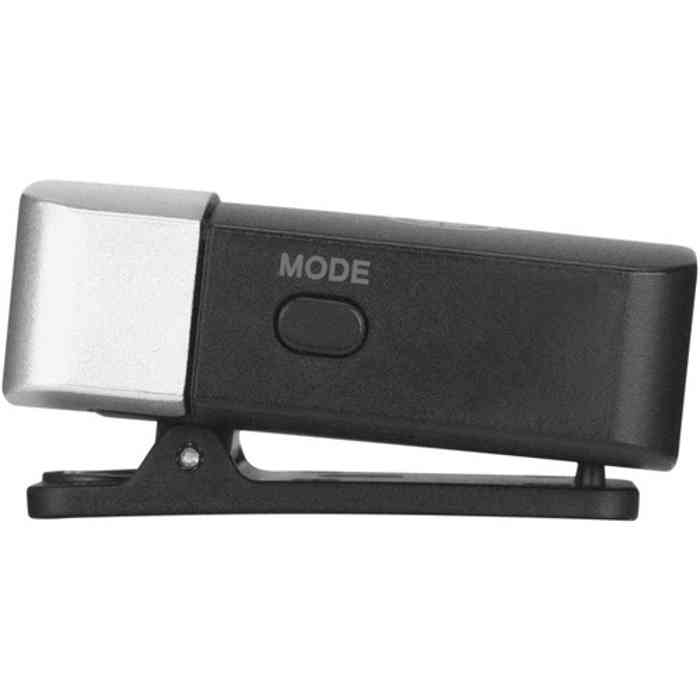

BY-M1LV-TX

Transmission Type	2.4GHz
Modulation	GFSK
Operating Range	Up to 328′ (100m) (without obstacles)
RF Output Power	-3.190dBm
Microphone Polar Pattern	Built-in Microphone: Omnidirectional
Frequency Response	50Hz-8.5KHz
SNR	> 70dB
Maximum SPL	Built-in Microphone: 110dB SPL
Sensitivity	Built-in Microphone: -39dB±2dB
	(0dB=1V/Pa@1kHz)
Power Requirement	Built-in Li-ion Battery or USB-C DC 5V
Antenna	PIFA Antenna
Battery Life	Approx. 6 hours
Audio Output	3.5mm Jack
Weight	Approx. 18g
Dimensions	40×38.2×14mm
Operating Temperature	-10°C to 50°C
Storage Temperature	–20°C to 55°C


BY-M1LV-U-RX

Transmission Type	2.4GHz
Modulation	GFSK
Operating Range	Up to 328′ (100m) (without obstacles)
RF Output Power	2.014dBm
Audio Output	USB-C Connector
Power Requirements	Supplied by USB-C Devices
Antenna	PIFA Antenna
Noise Reduction	Yes
Weight	Approx. 10g
Dimensions	23×38.2×14mm
Operating Temperature	-10°C to 50°C
Storage Temperature	–20°C to 55°C

Note:

How to use:

• Press and hold the power button for 3 seconds to turn on the transmitter.
• Plug the BY-M1LV-D-RX into an iOS device or the BY-M1LV-U-RX into a USB-C device.
• Transmitter and receiver pairing
• Before leaving the factory, the system is pre-paired. Therefore, the connection will be established once they are powered on. If they are disconnected, please follow the steps below:
  ① Double-click the power button of the transmitter. The indicator flashes blue and red alternately.
  ② When the transmitter indicator flashes blue and red alternately, insert the supplied pairing pin into the small pinhole on the receiver. The indicator of the receiver flashes blue rapidly.
  ③ Transmitter and receiver will be paired within 10 seconds. Indicators of both will flash blue slowly.
• You are ready to record.

Package Content:

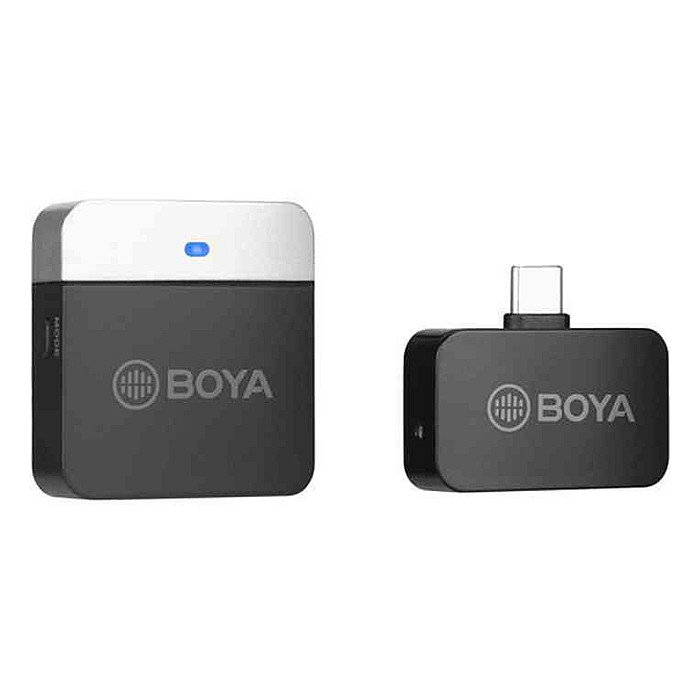

• 1 × BY-M1LV-TX Transmitter

• 1 × BY-M1LV-U-RX Receiver

• 1 × USB-C Charging Cable

• 1 × Fur Windshield

• 1 × Pairing Pin

• 1 x User Manual.
